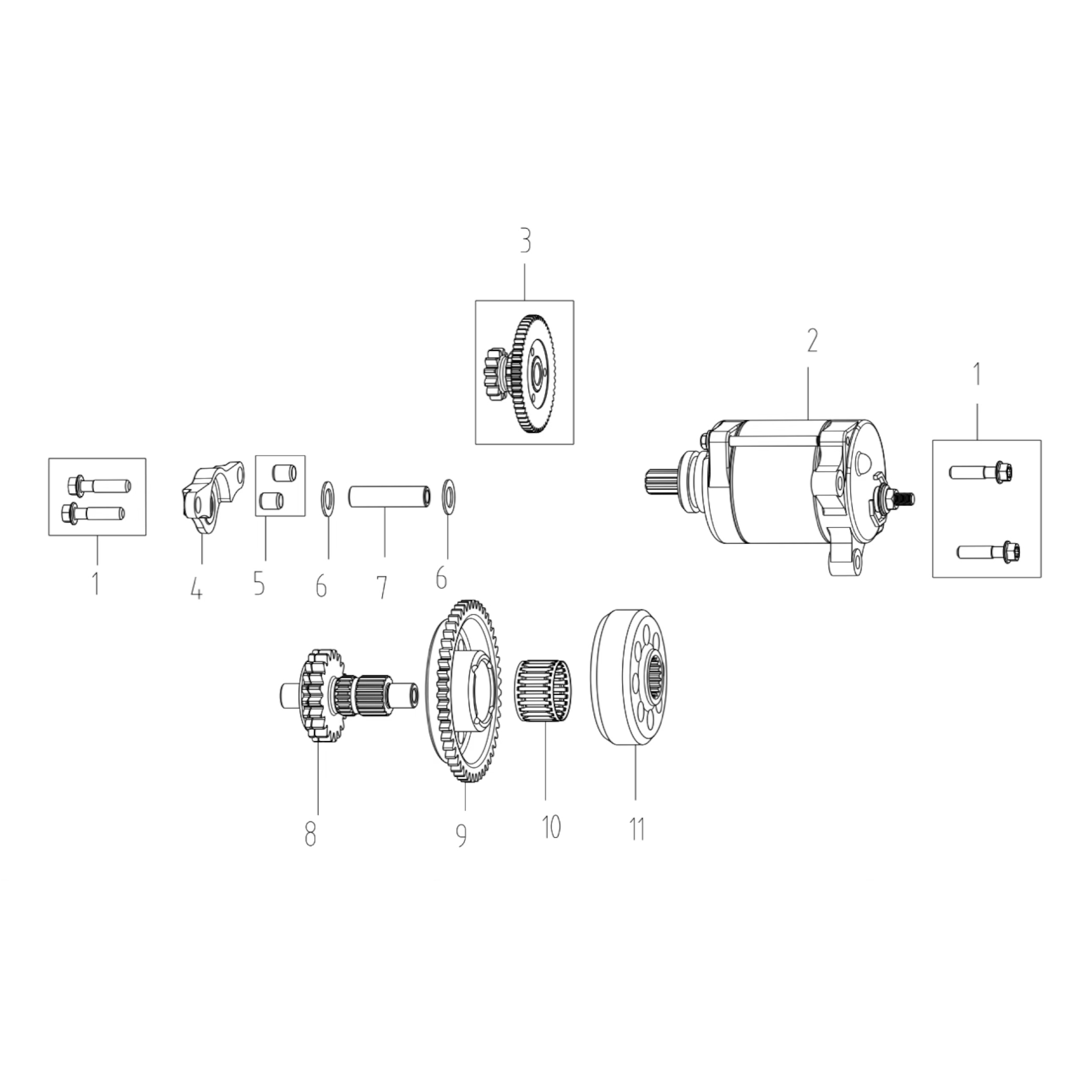

382250032-0001 / 5025-06025-BS02 / FLANGE BOLT

DescriptionName: FLANGE BOLTPart number: 382250032-0001Add. number: 5025-06025-BS02More details: M6×25

270350140-0002 / 240003-EDM10-00000 / MOTOR ASSY. STARTING

DescriptionName: MOTOR ASSY. STARTINGPart number: 270350140-0002Add. number: 240003-EDM10-00000More details: 1VA0;200_机壳镀蓝白锌Q16,机座抛丸Q05

193190064-0001 / 240300-EDM10-00000 / DUPLEX GEAR ELECTRIC STARTING

DescriptionName: DUPLEX GEAR ELECTRIC STARTINGPart number: 193190064-0001Add. number: 240300-EDM10-00000More details: Z1=55,m=1,Z2=12,m=1.75

190470160-0001 / PLATE CLUTCH PRESSURE

DescriptionName: PLATE CLUTCH PRESSUREPart number: 190470160-0001Add. number: More details:

380600057-0001 / 380600057-0001 / PIN DOWEL

DescriptionName: PIN DOWELPart number: 380600057-0001Add. number: 380600057-0001More details: 8×10

380451391-0001 / 380451391-0001 / WASHER PLAIN

DescriptionName: WASHER PLAINPart number: 380451391-0001Add. number: 380451391-0001More details: Φ10×Φ17×1

193230039-0001 / 193230039-0001 / SHAFT DUPLEX GEAR

DescriptionName: SHAFT DUPLEX GEARPart number: 193230039-0001Add. number: 193230039-0001More details: Φ10×39.5

197730001-0001 / 240002-EDM10-00000 / GEAR IDLE COMP. ELECTRIC STARTING

DescriptionName: GEAR IDLE COMP. ELECTRIC STARTINGPart number: 197730001-0001Add. number: 240002-EDM10-00000More details: 1VA0_Z=20,m=2_压力角20°_带1件附件平垫圈12×27×1;

193240068-0001 / 240500-EDM10-00000 / DISK GEAR

DescriptionName: DISK GEARPart number: 193240068-0001Add. number: 240500-EDM10-00000More details: Z=49，m=1.75

380630852-0001 / 380630852-0001 / BEARING

DescriptionName: BEARINGPart number: 380630852-0001Add. number: 380630852-0001More details: 1VA0_26×30×20_盘齿滚针轴承

193090051-0001 / 240200-EDM10-00000 / BODY ASSY. STARTING CLUTCH

DescriptionName: BODY ASSY. STARTING CLUTCHPart number: 193090051-0001Add. number: 240200-EDM10-00000More details: 1VA0_16楔块滚柱式
