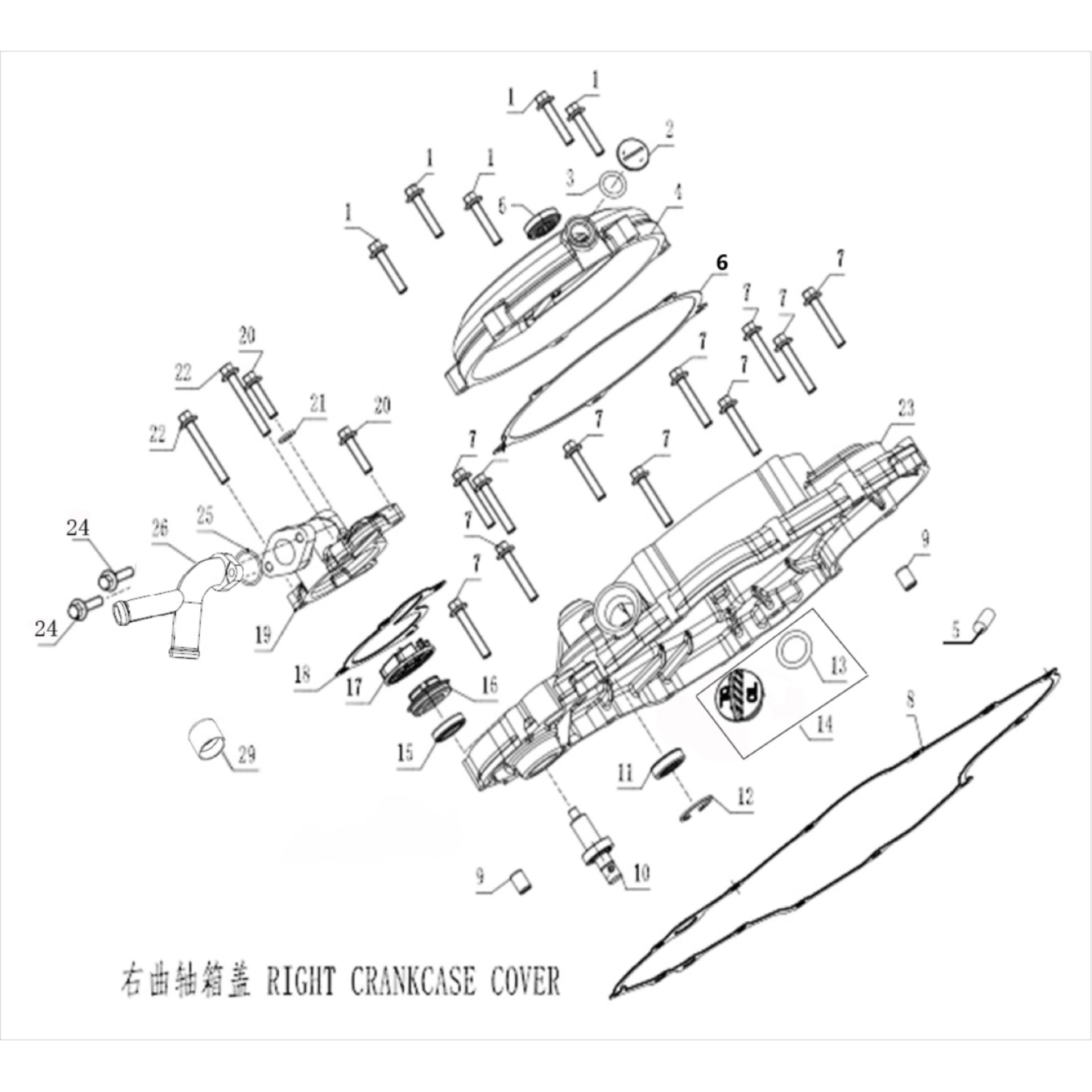

E04 Right crankcase cover

Ref

Produkt

Stückpreis

5003-06030-LB00 / 100031792-0003 / Bolt M6×30

999,00 €

Details

230003-EDT01-00000 / 100782769-0001 / Cap Small View Hole

999,00 €

Details

230007-EDT01-00000 / 100138362 / O-Ring φ13.2×2.65

999,00 €

Details

230013-EDT03-00000 / 100811360-0002 / Right decorate cover assembly with nozzle and oil window

999,00 €

Details

230301-EDT01-00000 / 100083675 / fuel spray nozzle

999,00 €

Details

230010-EDM01-00000 / 100087037 / Gasket Decotate Cover

999,00 €

Details

5001-06035-LB03 / 100011537-0002 / Bolt M6×35

999,00 €

Details

230004-EDT01-00000 / 100104577 / Gasket R.Crankcase Cover

999,00 €

Details

5017-09013-BS00 / 100102726 / Dowel Pin φ9×13

999,00 €

Details

260010-EDT01-00000 / 100069942 / Shaft Water Pump Ass.

999,00 €

Details

5103-142407-000 / 100104688 / Oil Seal 14×24×7

999,00 €

Details

230014-EDM04-00000 / 100011077 / Retaining Ring 24

999,00 €

Details

5104-018035-000 / 100107693 / O-Ring φ18×3.55

999,00 €

Details

230200-EDM01-00000 / 100126228 / Oil Plug Assy

999,00 €

Details

5103-122406-000 / 100104809 / Oil Seal 12×24×6

999,00 €

Details

260011-EDT01-00000 / 100105543 / Water Pump Seal

999,00 €

Details

260300-EDT01-00000 / 100066800 / Ane Wheel Water Pump

999,00 €

Details

260005-EDT01-00000 / 100069962 / Gasket

999,00 €

Details

260200-EDT01-00000 / 100070535-0003 / Water Pump Cover

999,00 €

Details

5001-06025-LB02 / 100011534-0002 / Bolt M6×25

999,00 €

Details

5018-06515-BS00 / 100106566 / Washer φ6.5×1.5×φ12

999,00 €

Details

5001-06045-LB00 / 100011539-0001 / Bolt M6×45

999,00 €

Details

230300-EDT03-00000 / Right decorate cover assembly with nozzle

999,00 €

Details

5001-06016-LB02 / 100055589-0006 / Bolt M6×16

999,00 €

Details

5104-019018-000 / 100107695 / O-Ring φ19×1.8

999,00 €

Details

160004-EDT02-00000 / 100731170 / Pipe Joint

999,00 €

Details

230012-EDT02-00000 / 100714175 / Plug

999,00 €

Details

5001-06016-LB02 / 100055589-0006 / Bolt M6×16

DescriptionName: Bolt M6×16Part number: 5001-06016-LB02Add. number: 100055589-0006More details:

999,00 €

Details

5018-06515-BS00 / 100106566 / Washer φ6.5×1.5×φ12

DescriptionName: Washer φ6.5×1.5×φ12Part number: 5018-06515-BS00Add. number: 100106566More details:

999,00 €

Details

5001-06035-LB03 / 100011537-0002 / Bolt M6×35

DescriptionName: Bolt M6×35Part number: 5001-06035-LB03Add. number: 100011537-0002More details:

999,00 €

Details

5003-06030-LB00 / 100031792-0003 / Bolt M6×30

DescriptionName: Bolt M6×30Part number: 5003-06030-LB00Add. number: 100031792-0003More details:

999,00 €

Details

230003-EDT01-00000 / 100782769-0001 / Cap Small View Hole

DescriptionName: Cap Small View HolePart number: 230003-EDT01-00000Add. number: 100782769-0001More details:

999,00 €

Details

230007-EDT01-00000 / 100138362 / O-Ring φ13.2×2.65

DescriptionName: O-Ring φ13.2×2.65Part number: 230007-EDT01-00000Add. number: 100138362More details:

999,00 €

Details

230013-EDT03-00000 / 100811360-0002 / Right decorate cover assembly with nozzle and oil window

DescriptionName: Right decorate cover assembly with nozzle and oil windowPart number: 230013-EDT03-00000Add. number: 100811360-0002More details:

999,00 €

Details

230301-EDT01-00000 / 100083675 / fuel spray nozzle

DescriptionName: fuel spray nozzlePart number: 230301-EDT01-00000Add. number: 100083675More details:

999,00 €

Details

230010-EDM01-00000 / 100087037 / Gasket Decotate Cover

DescriptionName: Gasket Decotate CoverPart number: 230010-EDM01-00000Add. number: 100087037More details:

999,00 €

Details

230004-EDT01-00000 / 100104577 / Gasket R.Crankcase Cover

DescriptionName: Gasket R.Crankcase CoverPart number: 230004-EDT01-00000Add. number: 100104577More details:

999,00 €

Details

5017-09013-BS00 / 100102726 / Dowel Pin φ9×13

DescriptionName: Dowel Pin φ9×13Part number: 5017-09013-BS00Add. number: 100102726More details:

999,00 €

Details

260010-EDT01-00000 / 100069942 / Shaft Water Pump Ass.

DescriptionName: Shaft Water Pump Ass.Part number: 260010-EDT01-00000Add. number: 100069942More details:

999,00 €

Details

5103-142407-000 / 100104688 / Oil Seal 14×24×7

DescriptionName: Oil Seal 14×24×7Part number: 5103-142407-000Add. number: 100104688More details:

999,00 €

Details

230014-EDM04-00000 / 100011077 / Retaining Ring 24

DescriptionName: Retaining Ring 24Part number: 230014-EDM04-00000Add. number: 100011077More details:

999,00 €

Details

5104-018035-000 / 100107693 / O-Ring φ18×3.55

DescriptionName: O-Ring φ18×3.55Part number: 5104-018035-000Add. number: 100107693More details:

999,00 €

Details

230200-EDM01-00000 / 100126228 / Oil Plug Assy

DescriptionName: Oil Plug AssyPart number: 230200-EDM01-00000Add. number: 100126228More details:

999,00 €

Details

5103-122406-000 / 100104809 / Oil Seal 12×24×6

DescriptionName: Oil Seal 12×24×6Part number: 5103-122406-000Add. number: 100104809More details:

999,00 €

Details

260011-EDT01-00000 / 100105543 / Water Pump Seal

DescriptionName: Water Pump SealPart number: 260011-EDT01-00000Add. number: 100105543More details:

999,00 €

Details

260300-EDT01-00000 / 100066800 / Ane Wheel Water Pump

DescriptionName: Ane Wheel Water PumpPart number: 260300-EDT01-00000Add. number: 100066800More details:

999,00 €

Details

260005-EDT01-00000 / 100069962 / Gasket

DescriptionName: GasketPart number: 260005-EDT01-00000Add. number: 100069962More details:

999,00 €

Details

260200-EDT01-00000 / 100070535-0003 / Water Pump Cover

DescriptionName: Water Pump CoverPart number: 260200-EDT01-00000Add. number: 100070535-0003More details:

999,00 €

Details

5001-06025-LB02 / 100011534-0002 / Bolt M6×25

DescriptionName: Bolt M6×25Part number: 5001-06025-LB02Add. number: 100011534-0002More details:

999,00 €

Details

5001-06045-LB00 / 100011539-0001 / Bolt M6×45

DescriptionName: Bolt M6×45Part number: 5001-06045-LB00Add. number: 100011539-0001More details:

999,00 €

Details

230300-EDT03-00000 / Right decorate cover assembly with nozzle

DescriptionName: Right decorate cover assembly with nozzlePart number: 230300-EDT03-00000Add. number: More details:

999,00 €

Details

5104-019018-000 / 100107695 / O-Ring φ19×1.8

DescriptionName: O-Ring φ19×1.8Part number: 5104-019018-000Add. number: 100107695More details:

999,00 €

Details

160004-EDT02-00000 / 100731170 / Pipe Joint

DescriptionName: Pipe JointPart number: 160004-EDT02-00000Add. number: 100731170More details:

999,00 €

Details

230012-EDT02-00000 / 100714175 / Plug

DescriptionName: PlugPart number: 230012-EDT02-00000Add. number: 100714175More details:

999,00 €

Details
