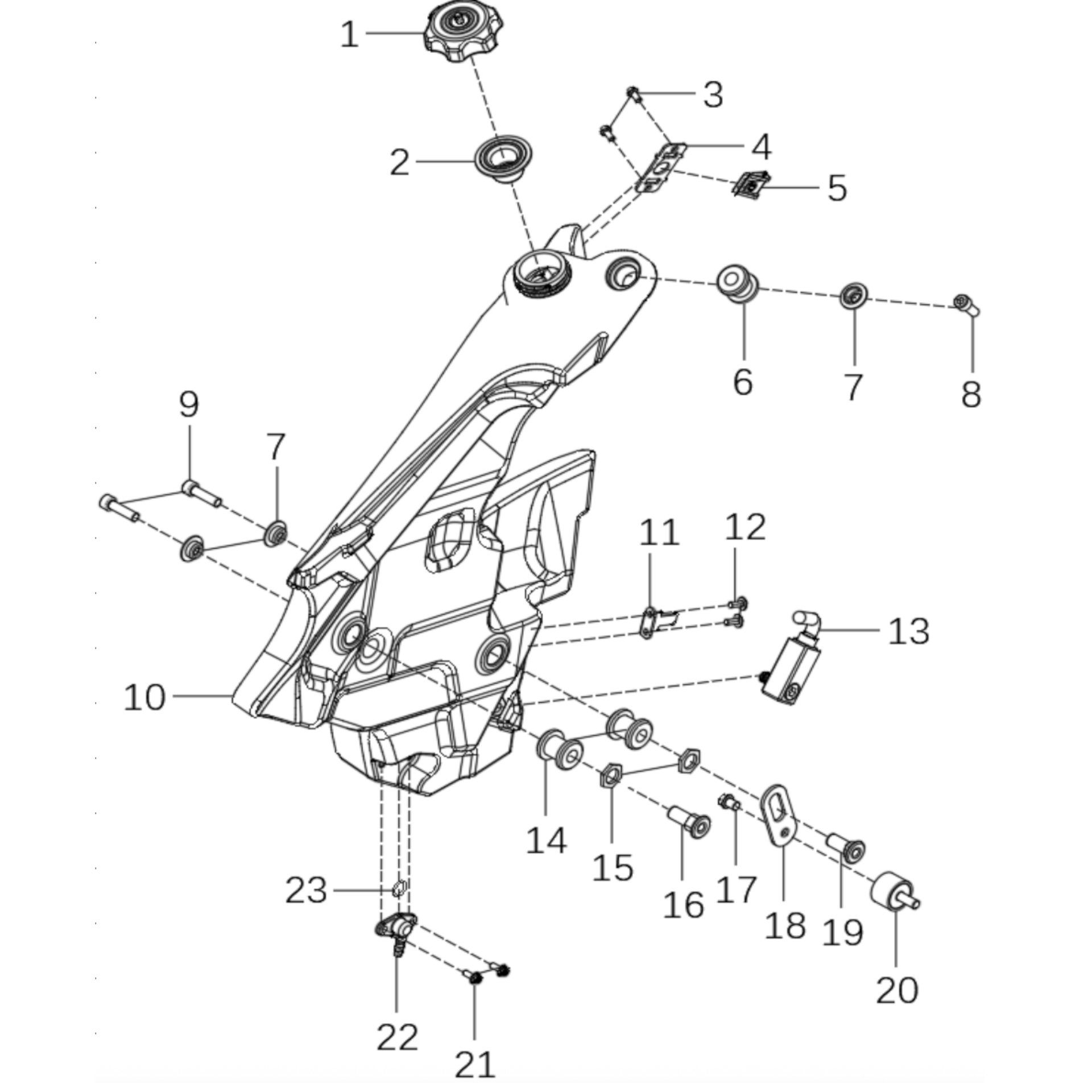

F08 Front fuel tank left

Ref

Produkt

Stückpreis

310006-T501-00001 / Cap Front fuel tank

999,00 €

Details

420061-T501-00001 / Rubber seal fuel tank

999,00 €

Details

5021-05012-DK00 / Internal hex bolt M5*12

999,00 €

Details

360045-T501-00000 / Bracket Front fuel tank guard

999,00 €

Details

5009-06093-BS00 / Hasp M6*9.3(Width: 25 Length: 25)

999,00 €

Details

420008-T501-00001 / Rubber ring∮29*∮19.5*25

999,00 €

Details

910013-T501-00000 / Mounting bush

999,00 €

Details

5003-08020-SC00 / Internal hex column chapiter screw M8*20

999,00 €

Details

5003-08030-SC00 / Internal hex column chapiter screw M8*30

999,00 €

Details

10,1

311200-T501-W0704 / Front fuel tank- Left no decal

999,00 €

Details

10,3

311200-T501-W0707 / Front fuel tank- Left with decal white/Yellow/Black

999,00 €

Details

10,2

311200-T501-W0706 / Front fuel tank- Left with decal white/Red/Black

999,00 €

Details

360036-T501-Y0100 / Fuel filter bracket

999,00 €

Details

5005-05012-HX00 / Phillips pan head screws M5*12

999,00 €

Details

310402-T500-00001 / Fuel level sensor

999,00 €

Details

420008-T501-00002 / Rubber ring∮29*∮19.5*29.5

999,00 €

Details

5008-16030-SC00 / Hex nut M16*3

999,00 €

Details

360047-T501-00001 / Mounting nut M8*35.5

999,00 €

Details

5021-08010-DK00 / Internal hex bolt M8*10

999,00 €

Details

360046-T501-00000 / Front fuel tank bracket

999,00 €

Details

360047-T501-00000 / Mounting nut M8*30.5

999,00 €

Details

5027-08020-BS00 / Rubber bolt M8*20

999,00 €

Details

5023-05010-BS00 / Internal hex socket countersunk head screw M5*10

999,00 €

Details

312000-T501-00000 / Fuel hose connector (single connector)

999,00 €

Details

5104-012020-000 / O-ring ∮12*∮2

999,00 €

Details

5021-05012-DK00 / Internal hex bolt M5*12

DescriptionName: Internal hex bolt M5*12Part number: 5021-05012-DK00Add. number: More details:

999,00 €

Details

5009-06093-BS00 / Hasp M6*9.3(Width: 25 Length: 25)

DescriptionName: Hasp M6*9.3(Width: 25 Length: 25)Part number: 5009-06093-BS00Add. number: More details:

999,00 €

Details

310006-T501-00001 / Cap Front fuel tank

DescriptionName: Cap Front fuel tankPart number: 310006-T501-00001Add. number: More details:

999,00 €

Details

420061-T501-00001 / Rubber seal fuel tank

DescriptionName: Rubber seal fuel tankPart number: 420061-T501-00001Add. number: More details:

999,00 €

Details

360045-T501-00000 / Bracket Front fuel tank guard

DescriptionName: Bracket Front fuel tank guardPart number: 360045-T501-00000Add. number: More details:

999,00 €

Details

420008-T501-00001 / Rubber ring∮29*∮19.5*25

DescriptionName: Rubber ring∮29*∮19.5*25Part number: 420008-T501-00001Add. number: More details:

999,00 €

Details

910013-T501-00000 / Mounting bush

DescriptionName: Mounting bushPart number: 910013-T501-00000Add. number: More details:

999,00 €

Details

5003-08020-SC00 / Internal hex column chapiter screw M8*20

DescriptionName: Internal hex column chapiter screw M8*20Part number: 5003-08020-SC00Add. number: More details:

999,00 €

Details

5003-08030-SC00 / Internal hex column chapiter screw M8*30

DescriptionName: Internal hex column chapiter screw M8*30Part number: 5003-08030-SC00Add. number: More details:

999,00 €

Details

311200-T501-W0704 / Front fuel tank- Left no decal

DescriptionName: Front fuel tank- Left no decalPart number: 311200-T501-W0704Add. number: More details:

999,00 €

Details

311200-T501-W0706 / Front fuel tank- Left with decal white/Red/Black

DescriptionName: Front fuel tank- Left with decal white/Red/BlackPart number: 311200-T501-W0706Add. number: More details:

999,00 €

Details

311200-T501-W0707 / Front fuel tank- Left with decal white/Yellow/Black

DescriptionName: Front fuel tank- Left with decal white/Yellow/BlackPart number: 311200-T501-W0707Add. number: More details:

999,00 €

Details

360036-T501-Y0100 / Fuel filter bracket

DescriptionName: Fuel filter bracketPart number: 360036-T501-Y0100Add. number: More details:

999,00 €

Details

5005-05012-HX00 / Phillips pan head screws M5*12

DescriptionName: Phillips pan head screws M5*12Part number: 5005-05012-HX00Add. number: More details:

999,00 €

Details

310402-T500-00001 / Fuel level sensor

DescriptionName: Fuel level sensor Part number: 310402-T500-00001Add. number: More details:

999,00 €

Details

420008-T501-00002 / Rubber ring∮29*∮19.5*29.5

DescriptionName: Rubber ring∮29*∮19.5*29.5Part number: 420008-T501-00002Add. number: More details:

999,00 €

Details

5008-16030-SC00 / Hex nut M16*3

DescriptionName: Hex nut M16*3Part number: 5008-16030-SC00Add. number: More details:

999,00 €

Details

360047-T501-00001 / Mounting nut M8*35.5

DescriptionName: Mounting nut M8*35.5Part number: 360047-T501-00001Add. number: More details:

999,00 €

Details

5021-08010-DK00 / Internal hex bolt M8*10

DescriptionName: Internal hex bolt M8*10Part number: 5021-08010-DK00Add. number: More details:

999,00 €

Details

360046-T501-00000 / Front fuel tank bracket

DescriptionName: Front fuel tank bracketPart number: 360046-T501-00000Add. number: More details:

999,00 €

Details

360047-T501-00000 / Mounting nut M8*30.5

DescriptionName: Mounting nut M8*30.5Part number: 360047-T501-00000Add. number: More details:

999,00 €

Details

5027-08020-BS00 / Rubber bolt M8*20

DescriptionName: Rubber bolt M8*20Part number: 5027-08020-BS00Add. number: More details:

999,00 €

Details

5023-05010-BS00 / Internal hex socket countersunk head screw M5*10

DescriptionName: Internal hex socket countersunk head screw M5*10Part number: 5023-05010-BS00Add. number: More details:

999,00 €

Details

312000-T501-00000 / Fuel hose connector (single connector)

DescriptionName: Fuel hose connector (single connector)Part number: 312000-T501-00000Add. number: More details:

999,00 €

Details

5104-012020-000 / O-ring ∮12*∮2

DescriptionName: O-ring ∮12*∮2Part number: 5104-012020-000Add. number: More details:

999,00 €

Details
