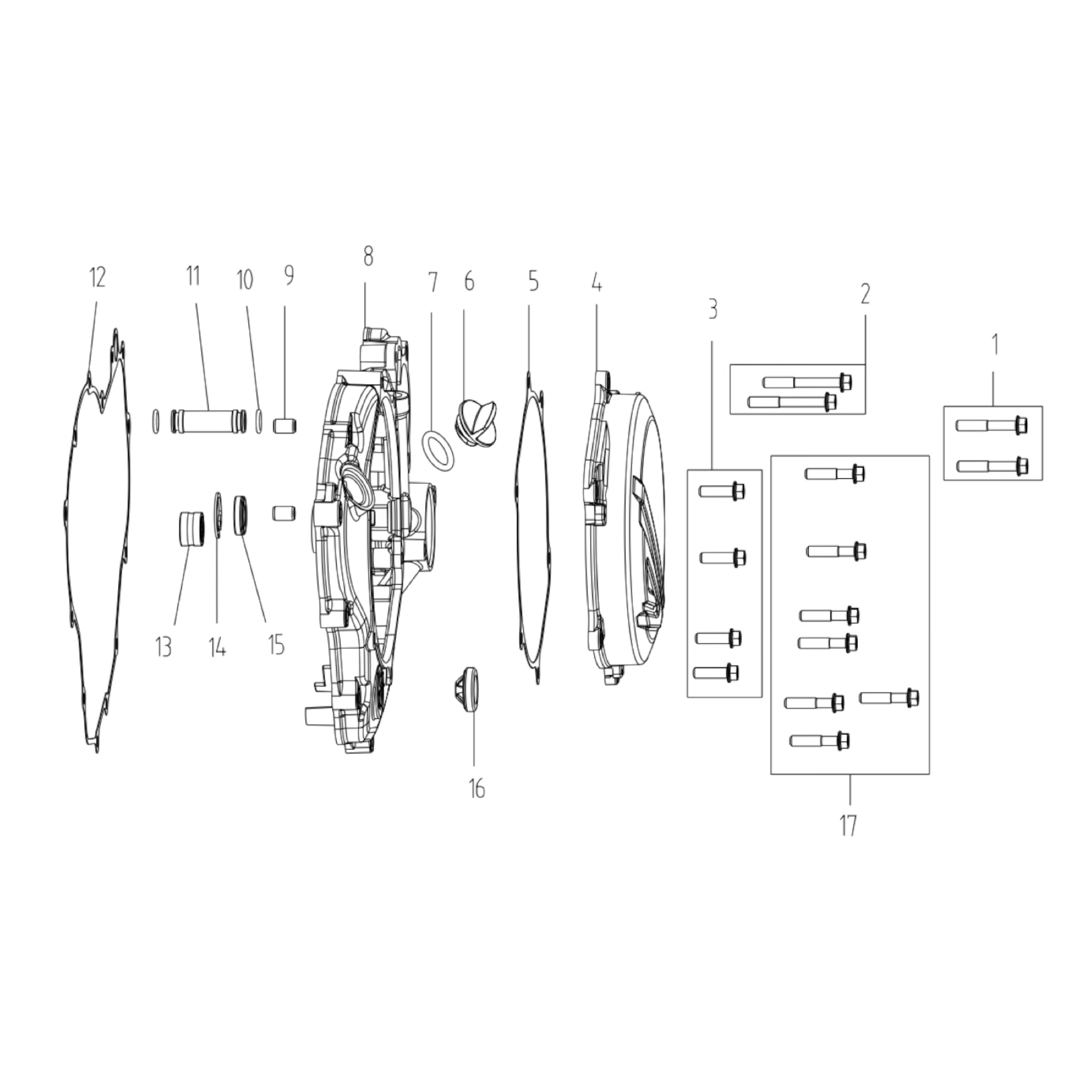

E05

Ref

Produkt

Stückpreis

382250035-0001 / 5025-06035-BS00 / FLANGE BOLT

999,00 €

Details

382250037-0001 / FLANGE BOLT

999,00 €

Details

382250030-0001 / 5025-06020-BS02 / FLANGE BOLT

999,00 €

Details

111020012-0002 / 230016-EDM10-00000 / OPERATION COVER GEARBOX

999,00 €

Details

111030009-0001 / 210024-EDM10-00000 / GASKET GEARBOX OPERATION COVER

999,00 €

Details

110700008-0002 / 230001-EBR01-000 / GAUGE COMP. OIL LEVEL

999,00 €

Details

380840006-0001 / 230006-EBR01-000 / RING SEAL

999,00 €

Details

110600978-0001 / 230002-EDM10-00000 / COVER COMP. RIGHT CRANKCASE

999,00 €

Details

380600012-0001 / 380600012-0001 / PIN DOWEL

999,00 €

Details

380840118-0001 / 160015-EDM10-00003 / RING SEAL

999,00 €

Details

150520011-0001 / PIPE MISSION OIL

999,00 €

Details

110620099-0001 / 230004-EDM10-00000 / GASKET RIGHT CRANKCASE COVER

999,00 €

Details

380630873-0001 / BEARING

999,00 €

Details

380550090-0001 / 5020-24012-BS00 / CHECK RING ELASTIC

999,00 €

Details

380650186-0001 / OIL SEAL

999,00 €

Details

110630001-0001 / 230005-EDM10-00000 / SIGHT GLASS OIL

999,00 €

Details

382250033-0001 / 5025-06028-BS00 / FLANGE BOLT

999,00 €

Details

382250033-0001 / 5025-06028-BS00 / FLANGE BOLT

DescriptionName: FLANGE BOLTPart number: 382250033-0001Add. number: 5025-06028-BS00More details: M6×28

999,00 €

Details

382250037-0001 / FLANGE BOLT

DescriptionName: FLANGE BOLTPart number: 382250037-0001Add. number: More details: M6×45

999,00 €

Details

382250030-0001 / 5025-06020-BS02 / FLANGE BOLT

DescriptionName: FLANGE BOLTPart number: 382250030-0001Add. number: 5025-06020-BS02More details: M6×20

999,00 €

Details

380630873-0001 / BEARING

DescriptionName: BEARINGPart number: 380630873-0001Add. number: More details: 1VA0_HK12×19×12_过桥齿滚针

999,00 €

Details

382250035-0001 / 5025-06035-BS00 / FLANGE BOLT

DescriptionName: FLANGE BOLTPart number: 382250035-0001Add. number: 5025-06035-BS00More details: M6×35

999,00 €

Details

111020012-0002 / 230016-EDM10-00000 / OPERATION COVER GEARBOX

DescriptionName: OPERATION COVER GEARBOXPart number: 111020012-0002Add. number: 230016-EDM10-00000More details: 1VA0;48#灰色G1J

999,00 €

Details

111030009-0001 / 210024-EDM10-00000 / GASKET GEARBOX OPERATION COVER

DescriptionName: GASKET GEARBOX OPERATION COVERPart number: 111030009-0001Add. number: 210024-EDM10-00000More details: 1VA0_钢垫

999,00 €

Details

110700008-0002 / 230001-EBR01-000 / GAUGE COMP. OIL LEVEL

DescriptionName: GAUGE COMP. OIL LEVELPart number: 110700008-0002Add. number: 230001-EBR01-000More details: M20×9.5

999,00 €

Details

380840006-0001 / 230006-EBR01-000 / RING SEAL

DescriptionName: RING SEALPart number: 380840006-0001Add. number: 230006-EBR01-000More details: 18×3-3.5

999,00 €

Details

110600978-0001 / 230002-EDM10-00000 / COVER COMP. RIGHT CRANKCASE

DescriptionName: COVER COMP. RIGHT CRANKCASEPart number: 110600978-0001Add. number: 230002-EDM10-00000More details: 1VA0_水冷;白板_抛丸Q05

999,00 €

Details

380600012-0001 / 380600012-0001 / PIN DOWEL

DescriptionName: PIN DOWELPart number: 380600012-0001Add. number: 380600012-0001More details: 8×12

999,00 €

Details

380840118-0001 / 160015-EDM10-00003 / RING SEAL

DescriptionName: RING SEALPart number: 380840118-0001Add. number: 160015-EDM10-00003More details: 9.8×1.9

999,00 €

Details

150520011-0001 / PIPE MISSION OIL

DescriptionName: PIPE MISSION OILPart number: 150520011-0001Add. number: More details: φ8×φ12×42

999,00 €

Details

110620099-0001 / 230004-EDM10-00000 / GASKET RIGHT CRANKCASE COVER

DescriptionName: GASKET RIGHT CRANKCASE COVERPart number: 110620099-0001Add. number: 230004-EDM10-00000More details: 1VA0_钢垫_厚0.3

999,00 €

Details

380550090-0001 / 5020-24012-BS00 / CHECK RING ELASTIC

DescriptionName: CHECK RING ELASTICPart number: 380550090-0001Add. number: 5020-24012-BS00More details: Q/LX G 8.17_d=24_S=1.25

999,00 €

Details

380650186-0001 / OIL SEAL

DescriptionName: OIL SEALPart number: 380650186-0001Add. number: More details: 14×22×5

999,00 €

Details

110630001-0001 / 230005-EDM10-00000 / SIGHT GLASS OIL

DescriptionName: SIGHT GLASS OILPart number: 110630001-0001Add. number: 230005-EDM10-00000More details: 24A0_φ16.7×φ25×7×11.2_丁晴橡胶NBR;

999,00 €

Details
