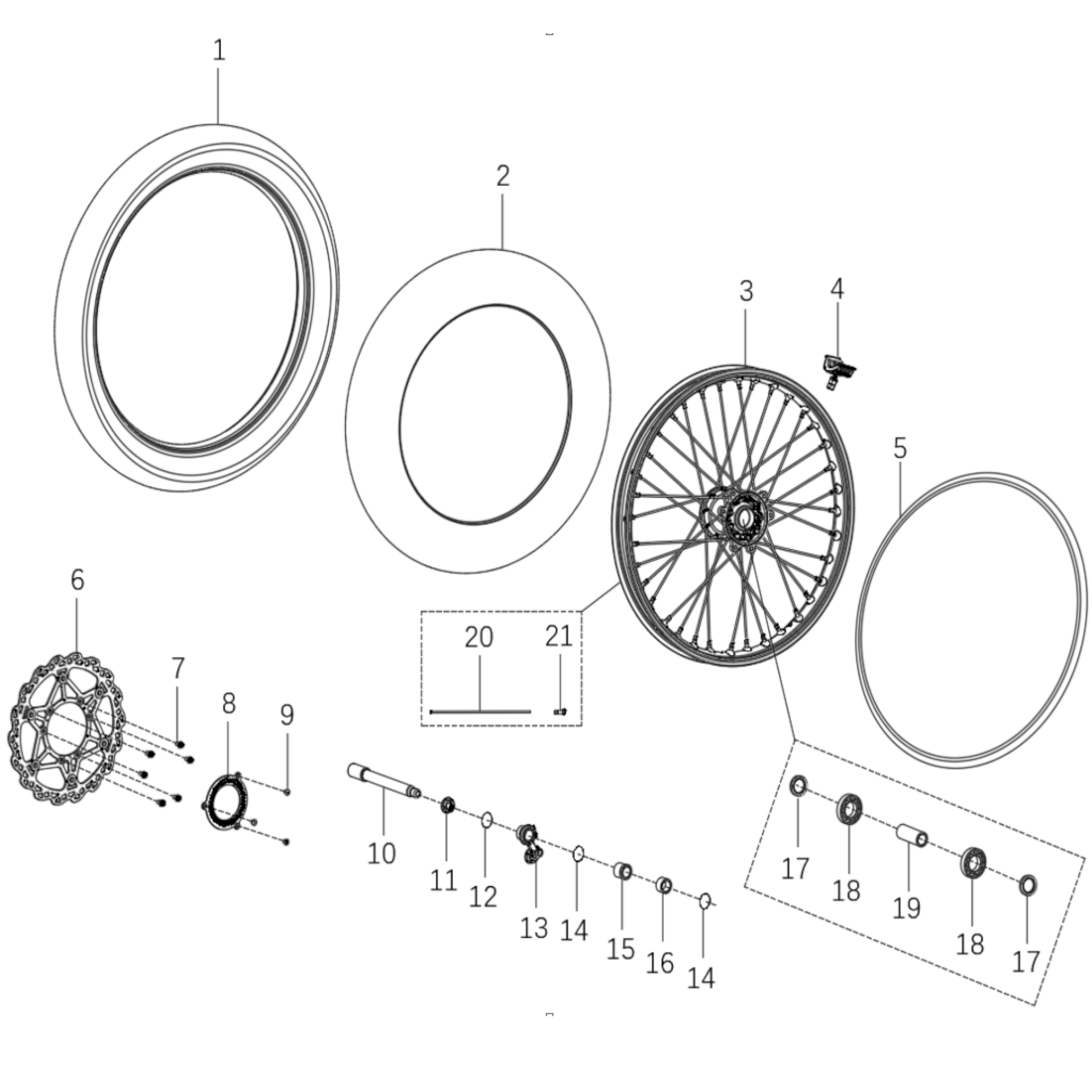

F05 Front wheel

Ref

Produkt

Stückpreis

350027-T500-00000 / Front tire（tube and tubeless)

999,00 €

Details

350026-T501-00000 / Front inner tube

999,00 €

Details

352000-T501-00000 / Front wheel assy (tube)

999,00 €

Details

350039-T501-00001 / Front rim lock (tube)

999,00 €

Details

350028-T501-00000 / Rim band Front wheel (tube)

999,00 €

Details

351700-T501-00000 / Front brake disc

999,00 €

Details

5021-06012-DK00 / Internal hex bolt M6*12

999,00 €

Details

350023-T500-00000 / ABS ring-Front

999,00 €

Details

5025-05008-BS00 / Internal hex socket countersunk head screw M5*0.8*8

999,00 €

Details

10-2

410001-T510-00001 / Front wheel axle（short axle with KYB fork）

999,00 €

Details

10-1

410001-T501-00002 / Front wheel axle（short axle with Yu An fork）

999,00 €

Details

5010-16110-SC00 / Pivot shaft nut M16*1.5*11

999,00 €

Details

5104-023016-000 / O-ring ∮23*∮1.6

999,00 €

Details

350041-T500-00000 / Front wheel speed sensor bracket

999,00 €

Details

5104-019518-000 / O-ring front wheel bush (KBY)

999,00 €

Details

15-2

910001-T510-00001 / Bush Front wheel-Left KYB

999,00 €

Details

15-1

910001-T500-00000 / Bush Front wheel-Left∮20*∮27*24.5(with wheel speed sensor bracket)Yu-An

999,00 €

Details

16-1

910012-T501-00002 / Bush Front wheel-Right Yu-An

999,00 €

Details

16-2

910012-T510-00000 / Bush Front wheel-Right KYB

999,00 €

Details

5103-273707-001 / Oil seal ∮27*∮37*7

999,00 €

Details

5101-203709-BS0 / Bearing 20*37*9

999,00 €

Details

910004-T501-00000 / Bush ∮20.3*∮27*71

999,00 €

Details

352001-T501-00000 / Front wheel spokes

999,00 €

Details

352003-T501-00000 / Front wheel nipples

999,00 €

Details

5021-06012-DK00 / Internal hex bolt M6*12

DescriptionName: Internal hex bolt M6*12Part number: 5021-06012-DK00Add. number: More details:

999,00 €

Details

5010-16110-SC00 / Pivot shaft nut M16*1.5*11

DescriptionName: Pivot shaft nut M16*1.5*11Part number: 5010-16110-SC00Add. number: More details:

999,00 €

Details

350027-T500-00000 / Front tire（tube and tubeless)

DescriptionName: Front tire（tube and tubeless)Part number: 350027-T500-00000Add. number: More details:

999,00 €

Details

350026-T501-00000 / Front inner tube

DescriptionName: Front inner tubePart number: 350026-T501-00000Add. number: More details:

999,00 €

Details

352000-T501-00000 / Front wheel assy (tube)

DescriptionName: Front wheel assy (tube)Part number: 352000-T501-00000Add. number: More details:

999,00 €

Details

350039-T501-00001 / Front rim lock (tube)

DescriptionName: Front rim lock (tube)Part number: 350039-T501-00001Add. number: More details:

999,00 €

Details

350028-T501-00000 / Rim band Front wheel (tube)

DescriptionName: Rim band Front wheel (tube)Part number: 350028-T501-00000Add. number: More details:

999,00 €

Details

351700-T501-00000 / Front brake disc

DescriptionName: Front brake discPart number: 351700-T501-00000Add. number: More details:

999,00 €

Details

350023-T500-00000 / ABS ring-Front

DescriptionName: ABS ring-FrontPart number: 350023-T500-00000Add. number: More details:

999,00 €

Details

5025-05008-BS00 / Internal hex socket countersunk head screw M5*0.8*8

DescriptionName: Internal hex socket countersunk head screw M5*0.8*8Part number: 5025-05008-BS00Add. number: More details:

999,00 €

Details

410001-T501-00002 / Front wheel axle（short axle with Yu An fork）

DescriptionName: Front wheel axle（short axle with Yu An fork）Part number: 410001-T501-00002Add. number: More details:

999,00 €

Details

410001-T510-00001 / Front wheel axle（short axle with KYB fork）

DescriptionName: Front wheel axle（short axle with KYB fork）Part number: 410001-T510-00001Add. number: More details:

999,00 €

Details

5104-023016-000 / O-ring ∮23*∮1.6

DescriptionName: O-ring ∮23*∮1.6Part number: 5104-023016-000Add. number: More details:

999,00 €

Details

350041-T500-00000 / Front wheel speed sensor bracket

DescriptionName: Front wheel speed sensor bracketPart number: 350041-T500-00000Add. number: More details:

999,00 €

Details

5104-019518-000 / O-ring front wheel bush (KBY)

DescriptionName: O-ring front wheel bush (KBY)Part number: 5104-019518-000Add. number: More details:

999,00 €

Details

910001-T500-00000 / Bush Front wheel-Left∮20*∮27*24.5(with wheel speed sensor bracket)Yu-An

DescriptionName: Bush Front wheel-Left∮20*∮27*24.5(with wheel speed sensor bracket)Yu-AnPart number: 910001-T500-00000Add. number: More details:

999,00 €

Details

910001-T510-00001 / Bush Front wheel-Left KYB

DescriptionName: Bush Front wheel-Left KYBPart number: 910001-T510-00001Add. number: More details:

999,00 €

Details

910012-T501-00002 / Bush Front wheel-Right Yu-An

DescriptionName: Bush Front wheel-Right Yu-AnPart number: 910012-T501-00002Add. number: More details:

999,00 €

Details

910012-T510-00000 / Bush Front wheel-Right KYB

DescriptionName: Bush Front wheel-Right KYBPart number: 910012-T510-00000Add. number: More details:

999,00 €

Details

5103-273707-001 / Oil seal ∮27*∮37*7

DescriptionName: Oil seal ∮27*∮37*7Part number: 5103-273707-001Add. number: More details:

999,00 €

Details

5101-203709-BS0 / Bearing 20*37*9

DescriptionName: Bearing 20*37*9Part number: 5101-203709-BS0Add. number: More details:

999,00 €

Details

910004-T501-00000 / Bush ∮20.3*∮27*71

DescriptionName: Bush ∮20.3*∮27*71Part number: 910004-T501-00000Add. number: More details:

999,00 €

Details

352001-T501-00000 / Front wheel spokes

DescriptionName: Front wheel spokesPart number: 352001-T501-00000Add. number: More details:

999,00 €

Details

352003-T501-00000 / Front wheel nipples

DescriptionName: Front wheel nipplesPart number: 352003-T501-00000Add. number: More details:

999,00 €

Details
