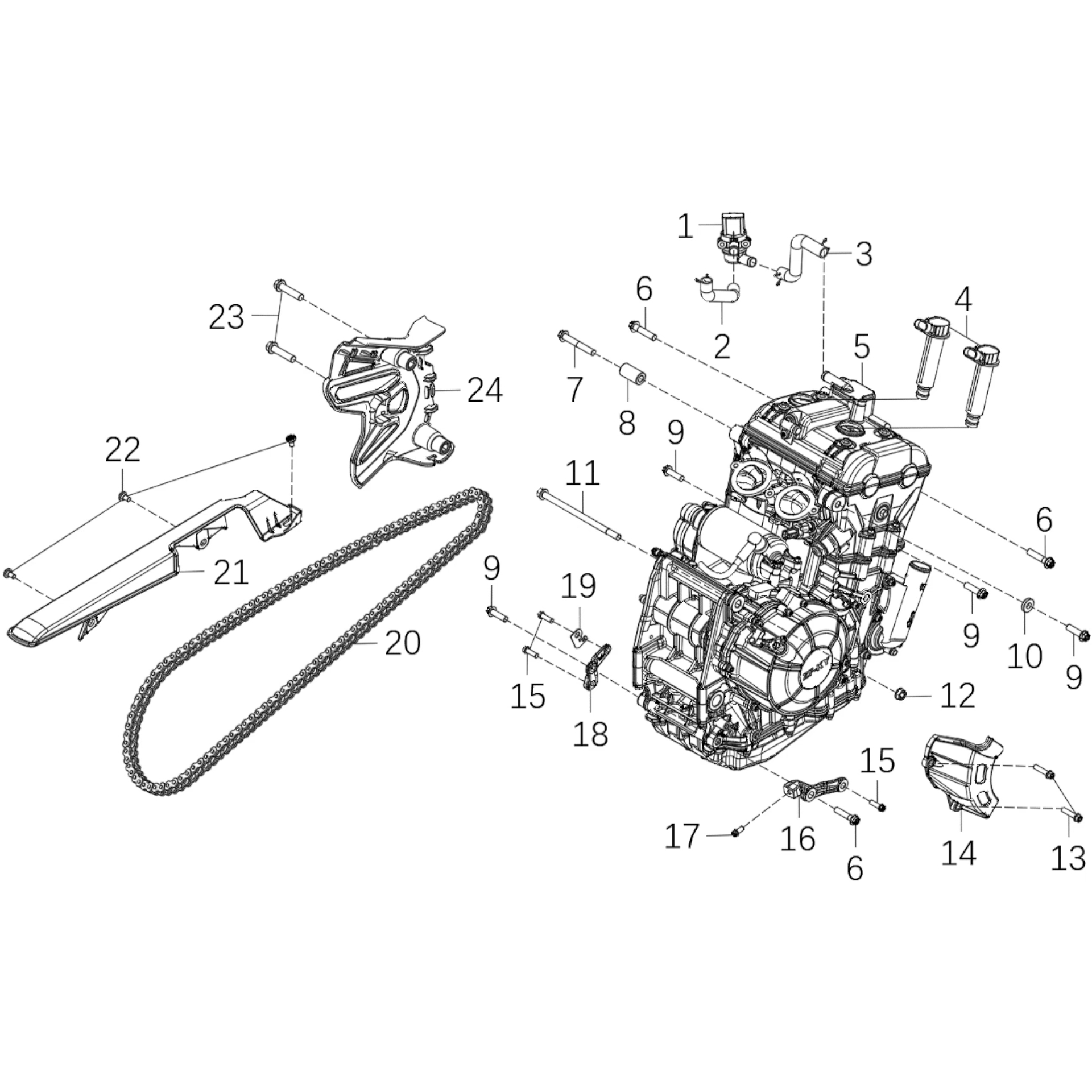

F06 Engine

Ref

Produkt

Stückpreis

320700-S100-00000 / Secondary air valve(800GY)

999,00 €

Details

420045-S100-00000 / Secondary air valve hose (800GY Euro V air filter to secondary air valve)

999,00 €

Details

420045-S100-00001 / Secondary air valve hose (800GY Euro V secondary air valve to engine)

999,00 €

Details

332600-S100-00000 / Ignition coil

999,00 €

Details

5021-10045-XN00 / Hex bolt (M10*1.25*45 applying glue)

999,00 €

Details

5021-10068-XN00 / Hex bolt (M10*1.25*68 applying glue)

999,00 €

Details

910004-S100-00004 / Bushing (800GY ∮10.5* ∮22*40)

999,00 €

Details

5021-10035-XN00 / Hex bolt (M10*1.25*35 applying glue)

999,00 €

Details

910004-P200-00002 / Bush ∮10*∮24*5

999,00 €

Details

5021-10175-XN00 / Hex bolt (M10*1.25*175 applying glue)

999,00 €

Details

5008-10115-SC01 / Hex self-locking nut M10*1.25*11.5*17

999,00 €

Details

5021-06033-XN00 / Hex bolt (M6*33)

999,00 €

Details

390018-S100-00000 / ENGINE HEAT COVER

999,00 €

Details

5021-08025-XN00 / Hex bolt (M8*25 disc∮13) Standard model

999,00 €

Details

360068-S100-E0100 / Lower engine reinforcement bracket-Right

999,00 €

Details

5021-08016-DK00 / Hex bolt (M8*16)

999,00 €

Details

360067-S100-00001 / Lower engine reinforcement bracket-Left

999,00 €

Details

360061-S100-E0100 / Side stand switch Bracket (800GY)

999,00 €

Details

352300-S100-00003 / Drive chain

999,00 €

Details

390014-S100-00000 / Chain guard

999,00 €

Details

5025-06012-BS01 / Hexalobular socket pan head screw M6*1*12

999,00 €

Details

5021-06025-XN00 / Hex bolt (M6*25)

999,00 €

Details

390023-S100-00000 / Drive sprocket cover

999,00 €

Details

ZEBS01-H08 / Engine (E5)

DescriptionName: Engine (E5)Part number: ZEBS01-H08Add. number: More details:

999,00 €

910004-P200-00002 / Bush ∮10*∮24*5

DescriptionName: Bush ∮10*∮24*5Part number: 910004-P200-00002Add. number: More details:

999,00 €

Details

5008-10115-SC01 / Hex self-locking nut M10*1.25*11.5*17

DescriptionName: Hex self-locking nut M10*1.25*11.5*17Part number: 5008-10115-SC01Add. number: More details:

999,00 €

Details

5025-06012-BS01 / Hexalobular socket pan head screw M6*1*12

DescriptionName: Hexalobular socket pan head screw M6*1*12Part number: 5025-06012-BS01Add. number: More details:

999,00 €

Details

5021-06025-XN00 / Hex bolt (M6*25)

DescriptionName: Hex bolt (M6*25)Part number: 5021-06025-XN00Add. number: More details:

999,00 €

Details

332600-S100-00000 / Ignition coil

DescriptionName: Ignition coilPart number: 332600-S100-00000Add. number: More details:

999,00 €

Details

5021-10045-XN00 / Hex bolt (M10*1.25*45 applying glue)

DescriptionName: Hex bolt (M10*1.25*45 applying glue)Part number: 5021-10045-XN00Add. number: More details:

999,00 €

Details

5021-10068-XN00 / Hex bolt (M10*1.25*68 applying glue)

DescriptionName: Hex bolt (M10*1.25*68 applying glue)Part number: 5021-10068-XN00Add. number: More details:

999,00 €

Details

910004-S100-00004 / Bushing (800GY ∮10.5* ∮22*40)

DescriptionName: Bushing (800GY ∮10.5* ∮22*40)Part number: 910004-S100-00004Add. number: More details:

999,00 €

Details

5021-10035-XN00 / Hex bolt (M10*1.25*35 applying glue)

DescriptionName: Hex bolt (M10*1.25*35 applying glue)Part number: 5021-10035-XN00Add. number: More details:

999,00 €

Details

5021-10175-XN00 / Hex bolt (M10*1.25*175 applying glue)

DescriptionName: Hex bolt (M10*1.25*175 applying glue)Part number: 5021-10175-XN00Add. number: More details:

999,00 €

Details

5021-06033-XN00 / Hex bolt (M6*33)

DescriptionName: Hex bolt (M6*33)Part number: 5021-06033-XN00Add. number: More details:

999,00 €

Details

390018-S100-00000 / ENGINE HEAT COVER

DescriptionName: ENGINE HEAT COVERPart number: 390018-S100-00000Add. number: More details:

999,00 €

Details

5021-08025-XN00 / Hex bolt (M8*25 disc∮13) Standard model

DescriptionName: Hex bolt (M8*25 disc∮13) Standard modelPart number: 5021-08025-XN00Add. number: More details:

999,00 €

Details

360068-S100-E0100 / Lower engine reinforcement bracket-Right

DescriptionName: Lower engine reinforcement bracket-RightPart number: 360068-S100-E0100Add. number: More details:

999,00 €

Details

5021-08016-DK00 / Hex bolt (M8*16)

DescriptionName: Hex bolt (M8*16)Part number: 5021-08016-DK00Add. number: More details:

999,00 €

Details

360067-S100-00001 / Lower engine reinforcement bracket-Left

DescriptionName: Lower engine reinforcement bracket-LeftPart number: 360067-S100-00001Add. number: More details:

999,00 €

Details

360061-S100-E0100 / Side stand switch Bracket (800GY)

DescriptionName: Side stand switch Bracket (800GY)Part number: 360061-S100-E0100Add. number: More details:

999,00 €

Details

352300-S100-00003 / Drive chain

DescriptionName: Drive chainPart number: 352300-S100-00003Add. number: More details:

999,00 €

Details

390014-S100-00000 / Chain guard

DescriptionName: Chain guardPart number: 390014-S100-00000Add. number: More details:

999,00 €

Details

320700-S100-00000 / Secondary air valve(800GY)

DescriptionName: Secondary air valve(800GY)Part number: 320700-S100-00000Add. number: More details:

999,00 €

Details

420045-S100-00001 / Secondary air valve hose (800GY Euro V secondary air valve to engine)

DescriptionName: Secondary air valve hose (800GY Euro V secondary air valve to engine)Part number: 420045-S100-00001Add. number: More details:

999,00 €

Details

420045-S100-00000 / Secondary air valve hose (800GY Euro V air filter to secondary air valve)

DescriptionName: Secondary air valve hose (800GY Euro V air filter to secondary air valve)Part number: 420045-S100-00000Add. number: More details:

999,00 €

Details

390023-S100-00000 / Drive sprocket cover

DescriptionName: Drive sprocket coverPart number: 390023-S100-00000Add. number: More details:

999,00 €

Details
